Warm-up

While you wait: Participate 📱💻

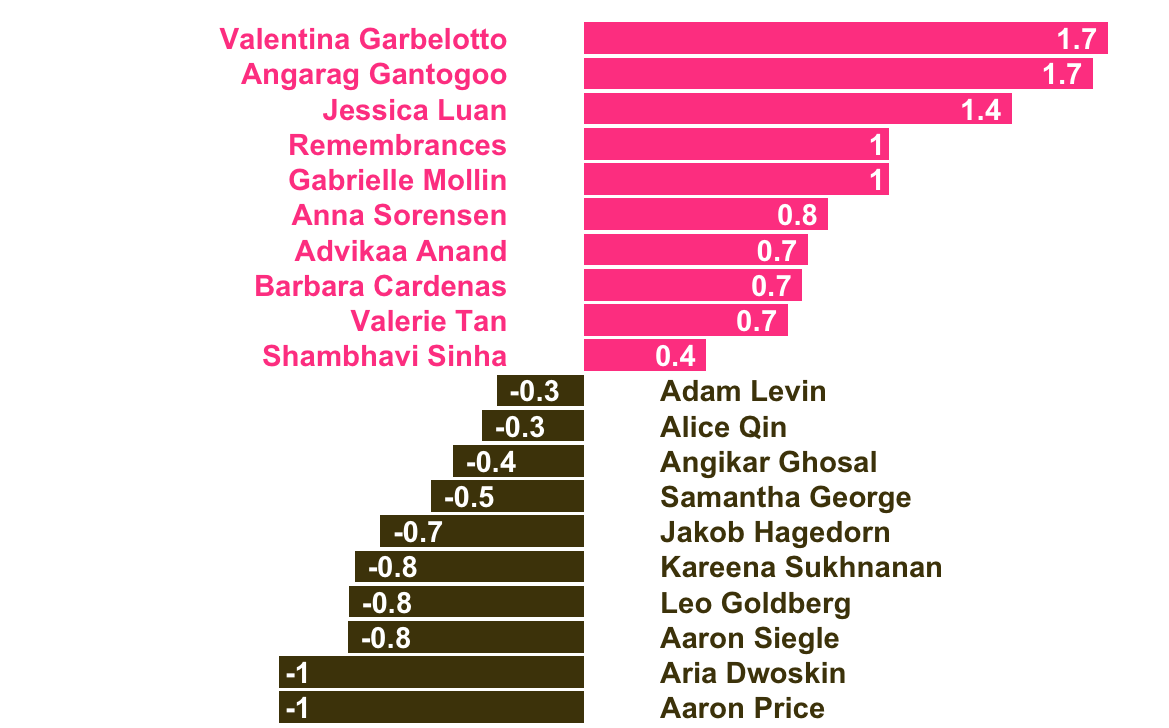

Guess: What is this plot about?

Then, make sure you have a Chrome browser and the SelectorGadget extension installed.

Scan the QR code or go to app.wooclap.com/sta199. Log in with your Duke NetID.

Announcements

Exam 1: Well done!
- In-class exam scores will be posted by Friday morning, you can see your exams in my office hours on Friday
- Take-home exam scores + feedback will be posted after fall break

. . .

New exam grade policy: For students who take all exams (Exam 1, Exam 2, and Final Exam), the final exam score will replace the lower of the two mid-semester exam scores, if the final exam score is higher.

. . .

Midsemester course survey:
- Optional and anonymous, but super helpful!
- Available till Thursday night on Canvas

Project

https://sta199-f25.github.io/project/description.html

Take note of the milestones and deadlines
- Milestone 1: If you missed it, check your email for a make-up.
- There will be no make-ups for future milestones
Start thinking about your project idea and potential data sources, Milestone 2 due after Fall break
Teamwork:
- Review the expectations and guidelines at the description above
- Take note of peer evaluation due dates (first one due with Milestone 2) and look out for emails from TEAMMATES
- Peer evaluation policy: You cannot receive the points your teammates have allocated to you if you do not fill out the peer evaluation yourself

Data on the web

Participate 📱💻

How often do you read The Chronicle?

Every day
3-5 times a week
Once a week
Rarely

Scan the QR code or go to app.wooclap.com/sta199. Log in with your Duke NetID.

Reading The Chronicle

What do you think is the most common word in the titles of The Chronicle opinion pieces?

Analyzing The Chronicle

Reading The Chronicle

How do you think the sentiments in opinion pieces in The Chronicle compare across authors? Roughly the same? Wildly different? Somewhere in between?

Analyzing The Chronicle

All of this analysis is done in R!

(mostly) with tools you already know!

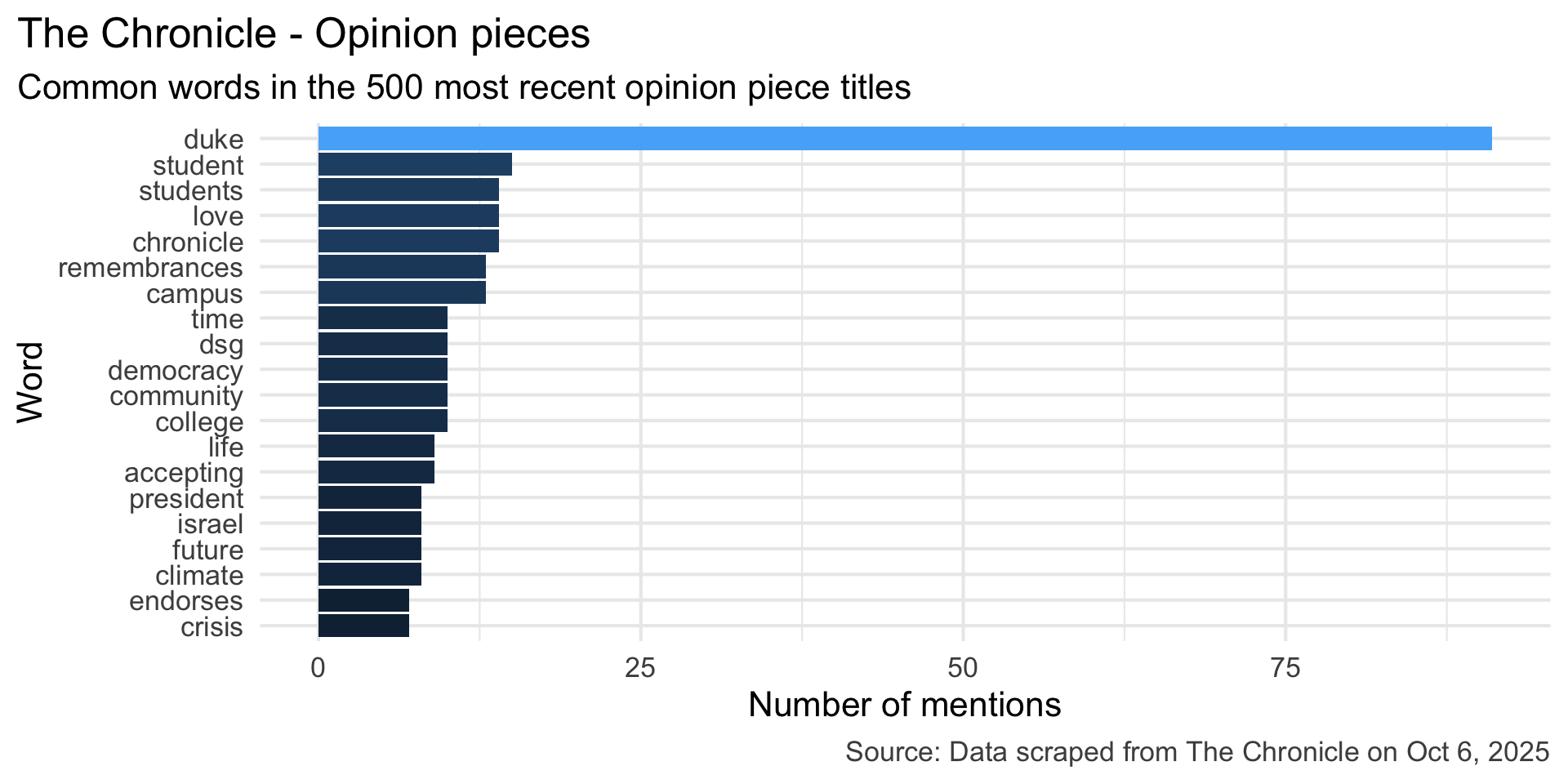

Common words in The Chronicle titles

Code for the earlier plot:

stop_words <- read_csv("data/stop-words.csv")
chronicle |>
  tidytext::unnest_tokens(word, title) |>
  mutate(word = str_replace_all(word, "’", "'")) |>
  anti_join(stop_words) |>
  count(word, sort = TRUE) |>
  filter(word != "duke's") |>
  slice_head(n = 20) |>
  mutate(word = fct_reorder(word, n)) |>
  ggplot(aes(y = word, x = n, fill = log(n))) +
  geom_col(show.legend = FALSE) +
  theme_minimal(base_size = 16) +
  labs(
    x = "Number of mentions",
    y = "Word",
    title = "The Chronicle - Opinion pieces",
    subtitle = "Common words in the 500 most recent opinion piece titles",
    caption = "Source: Data scraped from The Chronicle on Oct 6, 2025"
  ) +
  theme(
    plot.title.position = "plot",
    plot.caption = element_text(color = "gray30")
  )

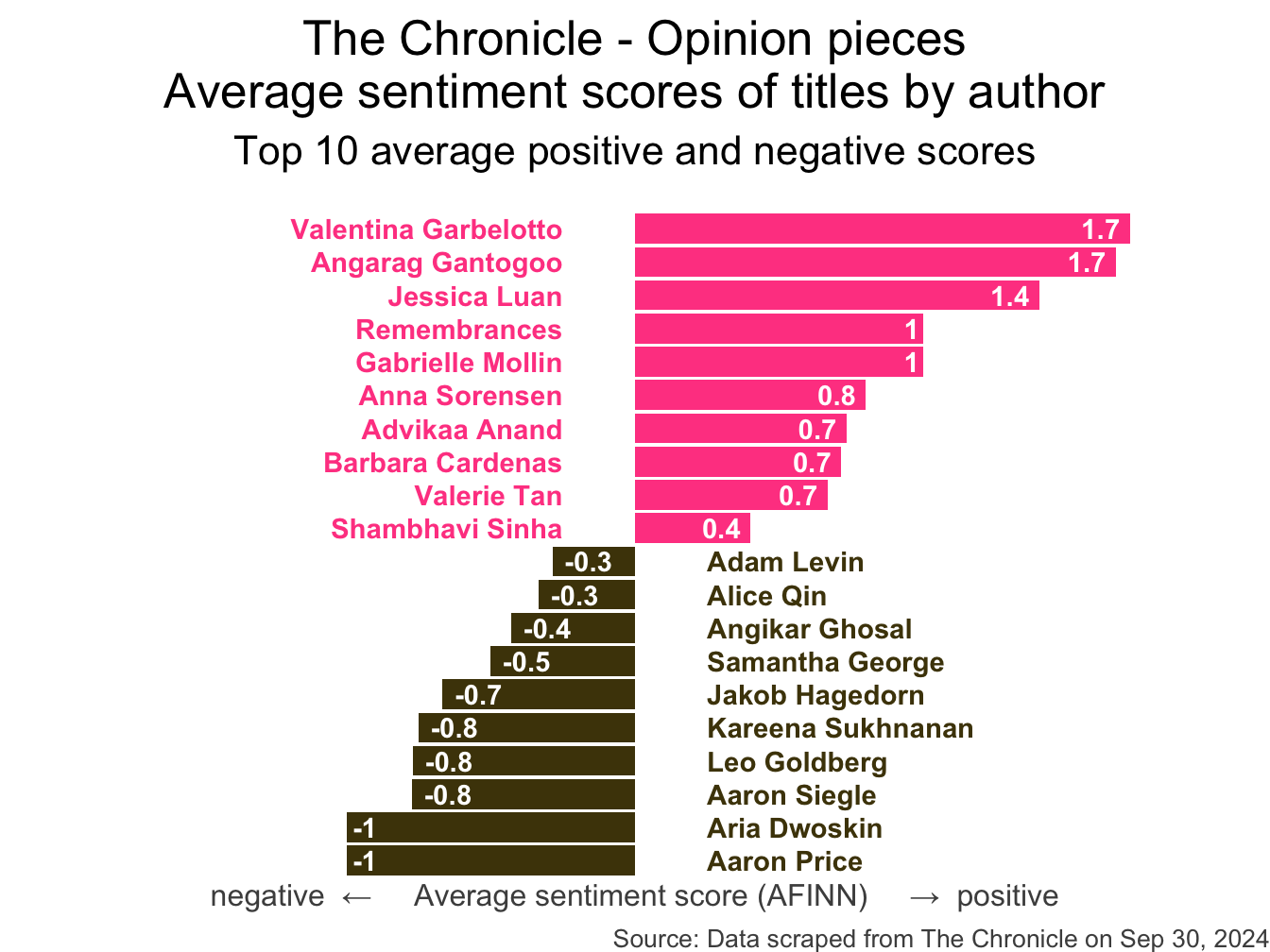

Avg sentiment scores of titles

Code for the earlier plot:

afinn_sentiments <- read_csv("data/afinn-sentiments.csv")
chronicle |>
  tidytext::unnest_tokens(word, title, drop = FALSE) |>
  mutate(word = str_replace_all(word, "’", "'")) |>
  anti_join(stop_words) |>
  left_join(afinn_sentiments) |>
  group_by(author, title) |>
  summarize(total_sentiment = sum(value, na.rm = TRUE), .groups = "drop") |>
  group_by(author) |>
  summarize(
    n_articles = n(),
    avg_sentiment = mean(total_sentiment, na.rm = TRUE),
  ) |>
  filter(n_articles > 2 & !is.na(author)) |>
  arrange(desc(avg_sentiment)) |>
  slice(c(1:10, 30:39)) |>
  mutate(
    author = fct_reorder(author, avg_sentiment),
    neg_pos = if_else(avg_sentiment < 0, "neg", "pos"),
    label_position = if_else(neg_pos == "neg", 0.25, -0.25)
  ) |>
  ggplot(aes(y = author, x = avg_sentiment)) +
  geom_col(aes(fill = neg_pos), show.legend = FALSE) +
  geom_text(
    aes(x = label_position, label = author, color = neg_pos),
    hjust = c(rep(1, 10), rep(0, 10)),
    show.legend = FALSE,
    fontface = "bold"
  ) +
  geom_text(
    aes(label = round(avg_sentiment, 1)),
    hjust = c(rep(1.25, 10), rep(-0.25, 10)),
    color = "white",
    fontface = "bold"
  ) +
  scale_fill_manual(values = c("neg" = "#4d4009", "pos" = "#FF4B91")) +
  scale_color_manual(values = c("neg" = "#4d4009", "pos" = "#FF4B91")) +
  coord_cartesian(xlim = c(-2, 2)) +
  labs(
    x = "negative  ←     Average sentiment score (AFINN)     →  positive",
    y = NULL,
    title = "The Chronicle - Opinion pieces\nAverage sentiment scores of titles by author",
    subtitle = "Top 10 average positive and negative scores",
    caption = "Source: Data scraped from The Chronicle on Sep 30, 2024"
  ) +
  theme_void(base_size = 16) +
  theme(
    plot.title = element_text(hjust = 0.5),
    plot.subtitle = element_text(
      hjust = 0.5,
      margin = unit(c(0.5, 0, 1, 0), "lines")
    ),
    axis.title.x = element_text(color = "gray30", size = 12),
    plot.caption = element_text(color = "gray30", size = 10)
  )

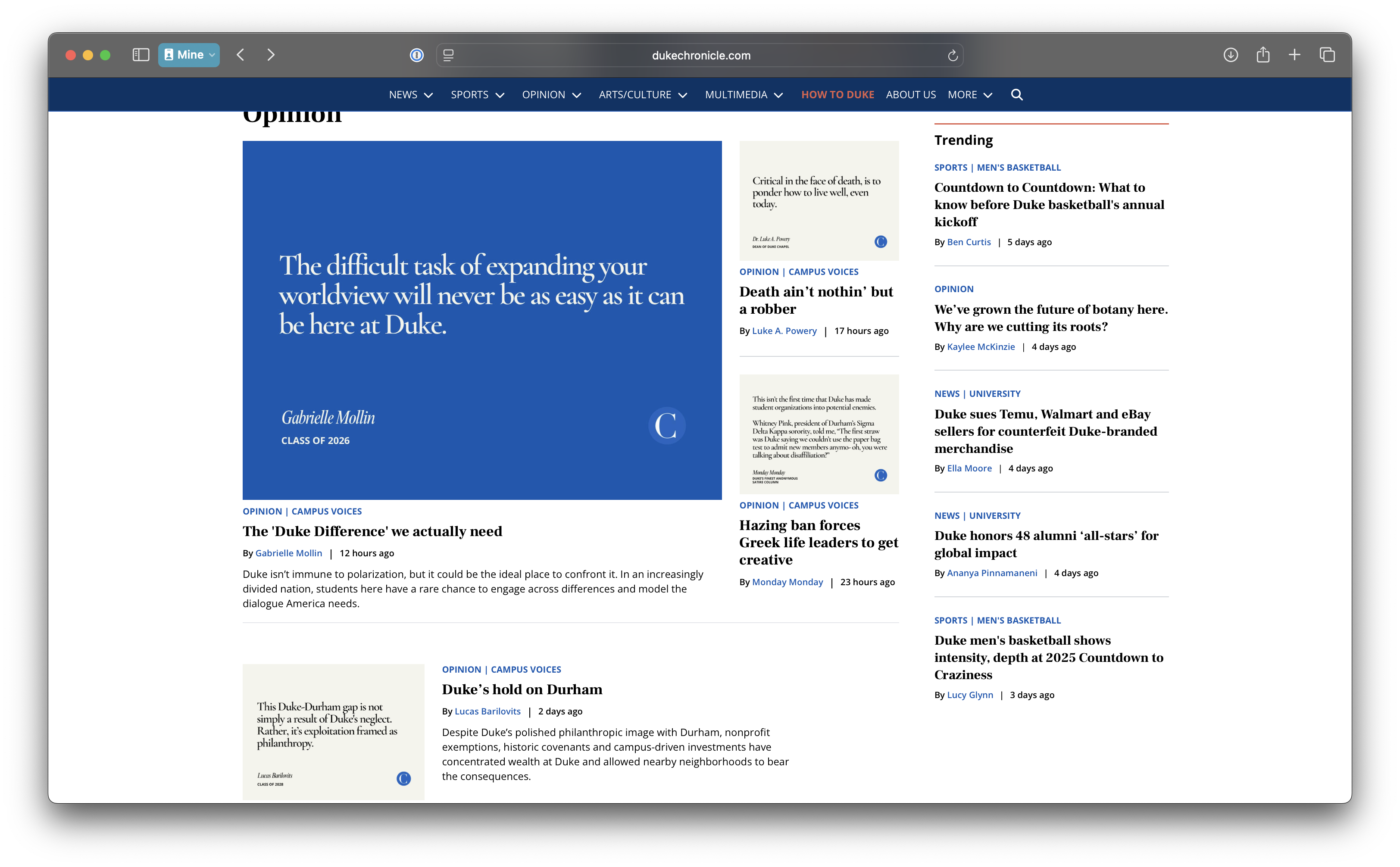

Where is the data coming from?

https://www.dukechronicle.com/section/opinion

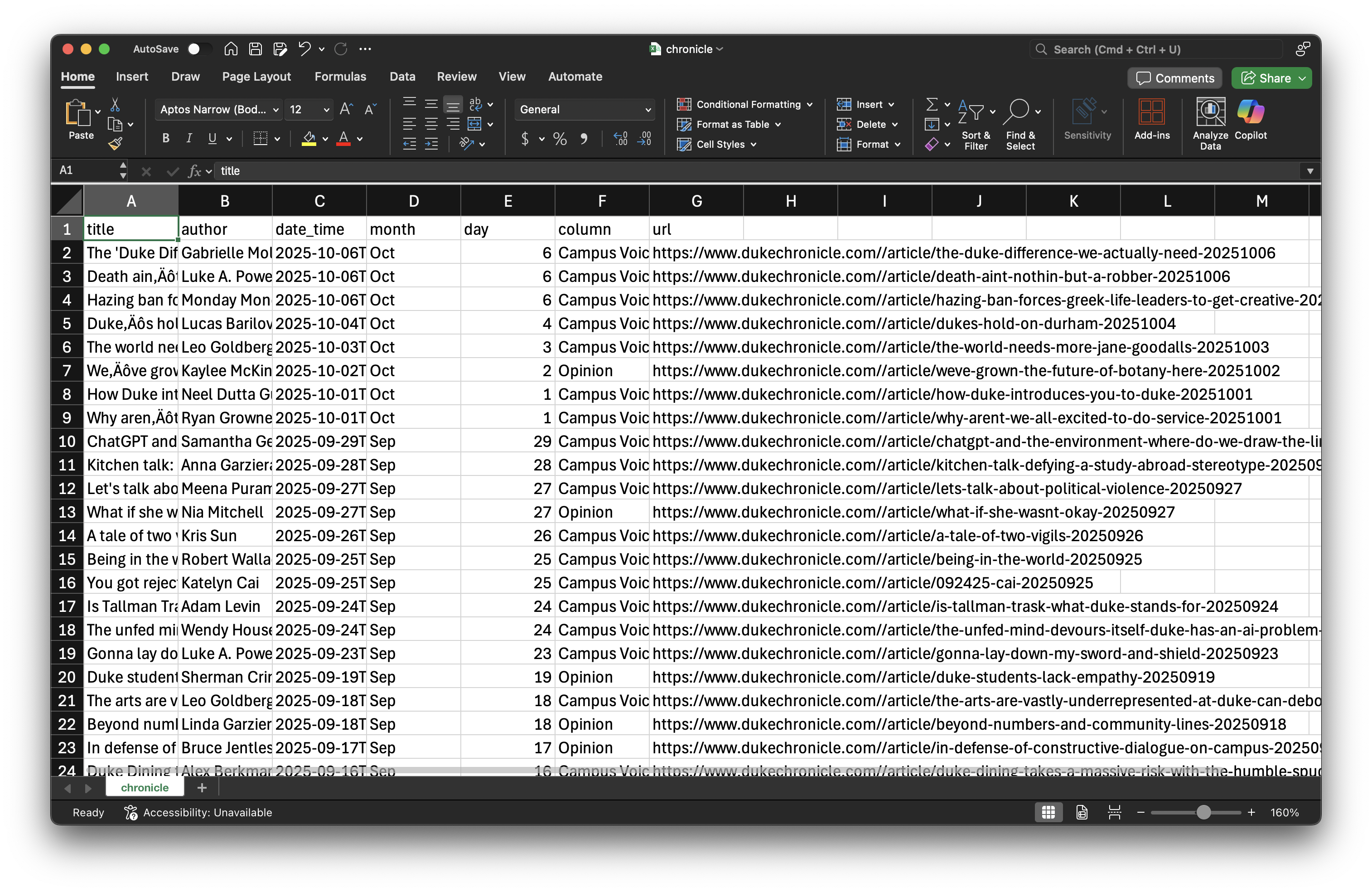

Where is the data coming from?

chronicle

# A tibble: 500 × 7
   title           author date_time           month   day column url
   <chr>           <chr>  <dttm>              <chr> <dbl> <chr>  <chr>
 1 The 'Duke Diff… Gabri… 2025-10-06 14:30:00 Oct       6 Campu… http…
 2 Death ain’t no… Luke … 2025-10-06 10:00:00 Oct       6 Campu… http…
 3 Hazing ban for… Monda… 2025-10-06 04:00:00 Oct       6 Campu… http…
 4 Duke’s hold on… Lucas… 2025-10-04 10:00:00 Oct       4 Campu… http…
 5 The world need… Leo G… 2025-10-03 10:00:00 Oct       3 Campu… http…
 6 We’ve grown th… Kayle… 2025-10-02 14:00:00 Oct       2 Opini… http…
 7 How Duke intro… Neel … 2025-10-01 10:00:00 Oct       1 Campu… http…
 8 Why aren’t we … Ryan … 2025-10-01 10:00:00 Oct       1 Campu… http…
 9 ChatGPT and th… Saman… 2025-09-29 10:00:00 Sep      29 Campu… http…
10 Kitchen talk: … Anna … 2025-09-28 10:00:00 Sep      28 Campu… http…
# ℹ 490 more rows

Web scraping

Scraping the web: what? why?

Increasing amount of data is available on the web
These data are provided in an unstructured format: you can always copy&paste, but it’s time-consuming and prone to errors
Web scraping is the process of extracting this information automatically and transform it into a structured dataset
Two different scenarios:
- Screen scraping: extract data from source code of website, with html parser (easy) or regular expression matching (less easy).
- Web APIs (application programming interface): website offers a set of structured http requests that return JSON or XML files.

Hypertext Markup Language

Most of the data on the web is still largely available as HTML - while it is structured (hierarchical) it often is not available in a form useful for analysis (flat / tidy).

<html>
  <head>
    <title>This is a title</title>
  </head>
  <body>
    <p align="center">Hello world!</p>
    <br/>
    <div class="name" id="first">John</div>
    <div class="name" id="last">Doe</div>
    <div class="contact">
      <div class="home">555-555-1234</div>
      <div class="home">555-555-2345</div>
      <div class="work">555-555-9999</div>
      <div class="fax">555-555-8888</div>
    </div>
  </body>
</html>

rvest

The rvest package makes basic processing and manipulation of HTML data straight forward
It’s designed to work with pipelines built with |>
rvest.tidyverse.org

library(rvest)

rvest

Core functions:

read_html() - read HTML data from a url or character string.
html_elements() - select specified elements from the HTML document using CSS selectors (or xpath).
html_element() - select a single element from the HTML document using CSS selectors (or xpath).
html_table() - parse an HTML table into a data frame.
html_text() / html_text2() - extract tag’s text content.
html_name - extract a tag/element’s name(s).
html_attrs - extract all attributes.
html_attr - extract attribute value(s) by name.

html, rvest, & xml2

html <-
  '<html>
  <head>
    <title>This is a title</title>
  </head>
  <body>
    <p align="center">Hello world!</p>
    <br/>
    <div class="name" id="first">John</div>
    <div class="name" id="last">Doe</div>
    <div class="contact">
      <div class="home">555-555-1234</div>
      <div class="home">555-555-2345</div>
      <div class="work">555-555-9999</div>
      <div class="fax">555-555-8888</div>
    </div>
  </body>
</html>'

. . .

read_html(html)

{html_document}
<html>
[1] <head>\n<meta http-equiv="Content-Type" content="text/html; cha ...
[2] <body>\n    <p align="center">Hello world!</p>\n    <br><div cl ...

Selecting elements

read_html(html) |> html_elements("p")

{xml_nodeset (1)}
[1] <p align="center">Hello world!</p>

. . .

read_html(html) |> html_elements("p") |> html_text()

[1] "Hello world!"

. . .

read_html(html) |> html_elements("p") |> html_name()

[1] "p"

. . .

read_html(html) |> html_elements("p") |> html_attrs()

[[1]]
   align
"center"

. . .

read_html(html) |> html_elements("p") |> html_attr("align")

[1] "center"

More selecting tags

read_html(html) |> html_elements("div")

{xml_nodeset (7)}
[1] <div class="name" id="first">John</div>
[2] <div class="name" id="last">Doe</div>
[3] <div class="contact">\n      <div class="home">555-555-1234</di ...
[4] <div class="home">555-555-1234</div>
[5] <div class="home">555-555-2345</div>
[6] <div class="work">555-555-9999</div>
[7] <div class="fax">555-555-8888</div>

. . .

read_html(html) |> html_elements("div") |> html_text()

[1] "John"
[2] "Doe"
[3] "\n      555-555-1234\n      555-555-2345\n      555-555-9999\n      555-555-8888\n    "
[4] "555-555-1234"
[5] "555-555-2345"
[6] "555-555-9999"
[7] "555-555-8888"

CSS selectors

We will use a tool called SelectorGadget to help us identify the HTML elements of interest by constructing a CSS selector which can be used to subset the HTML document.

. . .

Some examples of basic selector syntax is below,

Selector	Example	Description
.class	`.title`	Select all elements with class=“title”
#id	`#name`	Select all elements with id=“name”
element	`p`	Select all <p> elements
element element	`div p`	Select all <p> elements inside a <div> element
element>element	`div > p`	Select all <p> elements with <div> as a parent
[attribute]	`[class]`	Select all elements with a class attribute
[attribute=value]	`[class=title]`	Select all elements with class=“title”

CSS classes and ids

read_html(html) |> html_elements(".name")

{xml_nodeset (2)}
[1] <div class="name" id="first">John</div>
[2] <div class="name" id="last">Doe</div>

. . .

read_html(html) |> html_elements("div.name")

{xml_nodeset (2)}
[1] <div class="name" id="first">John</div>
[2] <div class="name" id="last">Doe</div>

. . .

read_html(html) |> html_elements("#first")

{xml_nodeset (1)}
[1] <div class="name" id="first">John</div>

Text with `html_text()` vs. `html_text2()`

html = read_html(
  "<p>
    This is the first sentence in the paragraph.
    This is the second sentence that should be on the same line as the first sentence.<br>This third sentence should start on a new line.
  </p>"
)

. . .

html |> html_text()

[1] "  \n    This is the first sentence in the paragraph.\n    This is the second sentence that should be on the same line as the first sentence.This third sentence should start on a new line.\n  "

html |> html_text2()

[1] "This is the first sentence in the paragraph. This is the second sentence that should be on the same line as the first sentence.\nThis third sentence should start on a new line."

HTML tables with `html_table()`

html_table =
  '<html>
  <head>
    <title>This is a title</title>
  </head>
  <body>
    <table>
      <tr> <th>a</th> <th>b</th> <th>c</th> </tr>
      <tr> <td>1</td> <td>2</td> <td>3</td> </tr>
      <tr> <td>2</td> <td>3</td> <td>4</td> </tr>
      <tr> <td>3</td> <td>4</td> <td>5</td> </tr>
    </table>
  </body>
</html>'

. . .

read_html(html_table) |>
  html_elements("table") |>
  html_table()

[[1]]
# A tibble: 3 × 3
      a     b     c
  <int> <int> <int>
1     1     2     3
2     2     3     4
3     3     4     5

SelectorGadget

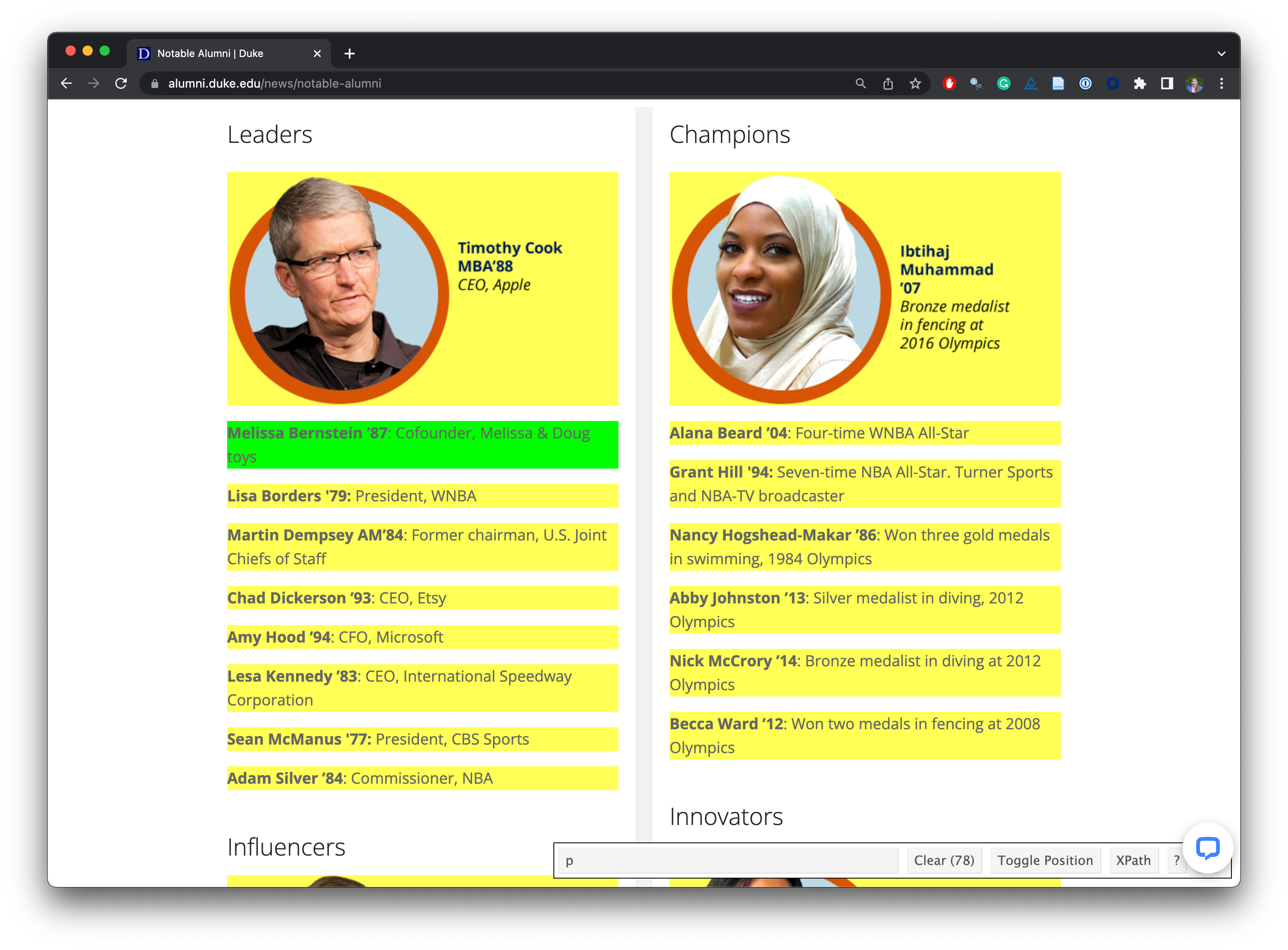

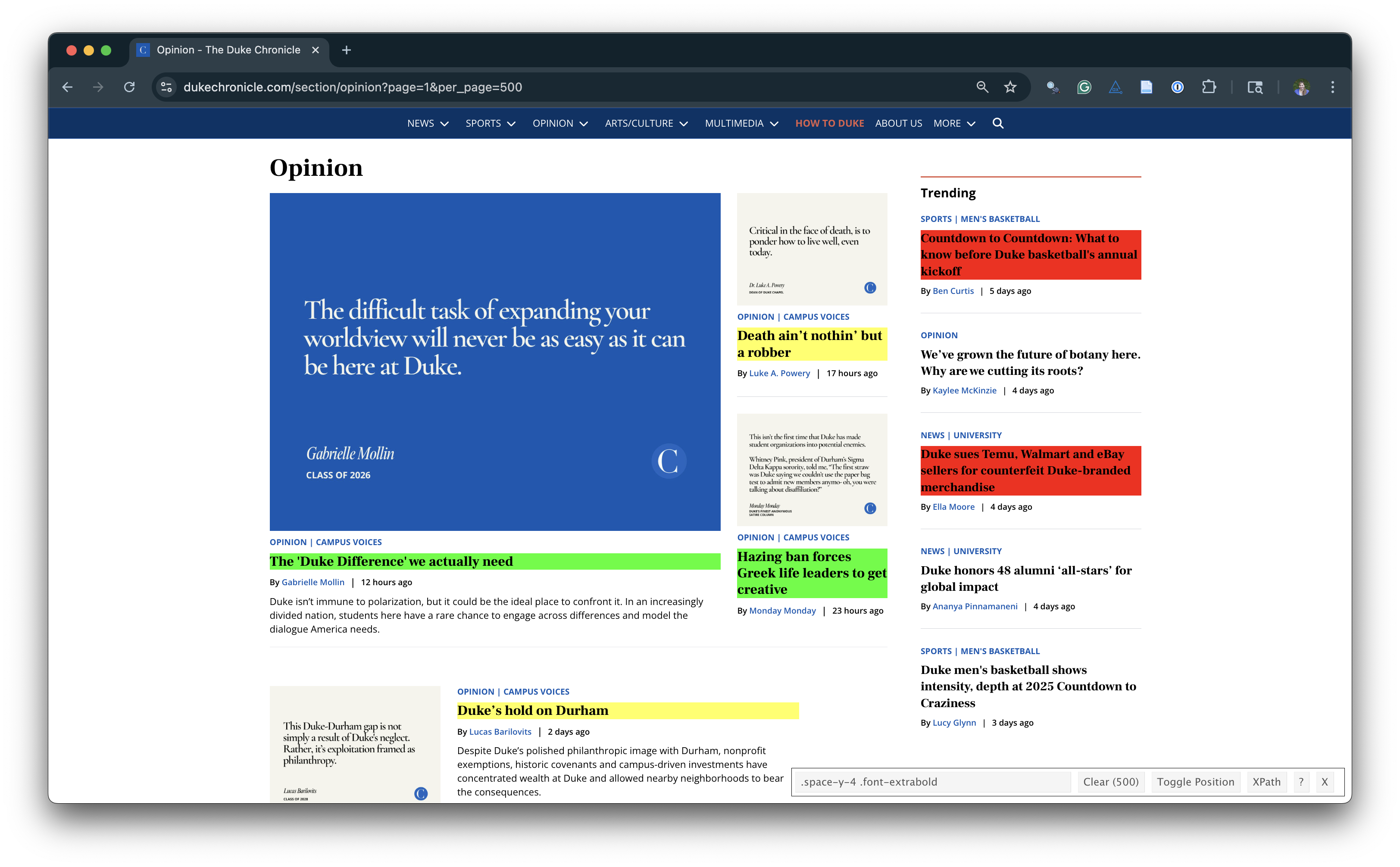

SelectorGadget (selectorgadget.com) is a javascript based tool that helps you interactively build an appropriate CSS selector for the content you are interested in.

Application exercise

Opinion articles in The Chronicle

Go to https://www.dukechronicle.com/section/opinion?page=1&per_page=500.

How many articles are on the page?

Goal

Scrape data and organize it in a tidy format in R
Perform light text parsing to clean data
Summarize and visualze the data

ae-09-chronicle-scrape

Go to your ae project in RStudio.
If you haven’t yet done so, make sure all of your changes up to this point are committed and pushed, i.e., there’s nothing left in your Git pane.
If you haven’t yet done so, click Pull to get today’s application exercise file: ae-09-chronicle-scrape.qmd and chronicle-scrape.R.

Recap

Use the SelectorGadget identify tags for elements you want to grab
Use rvest to first read the whole page (into R) and then parse the object you’ve read in to the elements you’re interested in
Put the components together in a data frame (a tibble) and analyze it like you analyze any other data

A new R workflow

When working in a Quarto document, your analysis is re-run each time you knit
If web scraping in a Quarto document, you’d be re-scraping the data each time you knit, which is undesirable (and not nice)!
An alternative workflow:
- Use an R script to save your code
- Saving interim data scraped using the code in the script as CSV or RDS files
- Use the saved data in your analysis in your Quarto document

Web scraping considerations

Ethics: “Can you?” vs “Should you?”

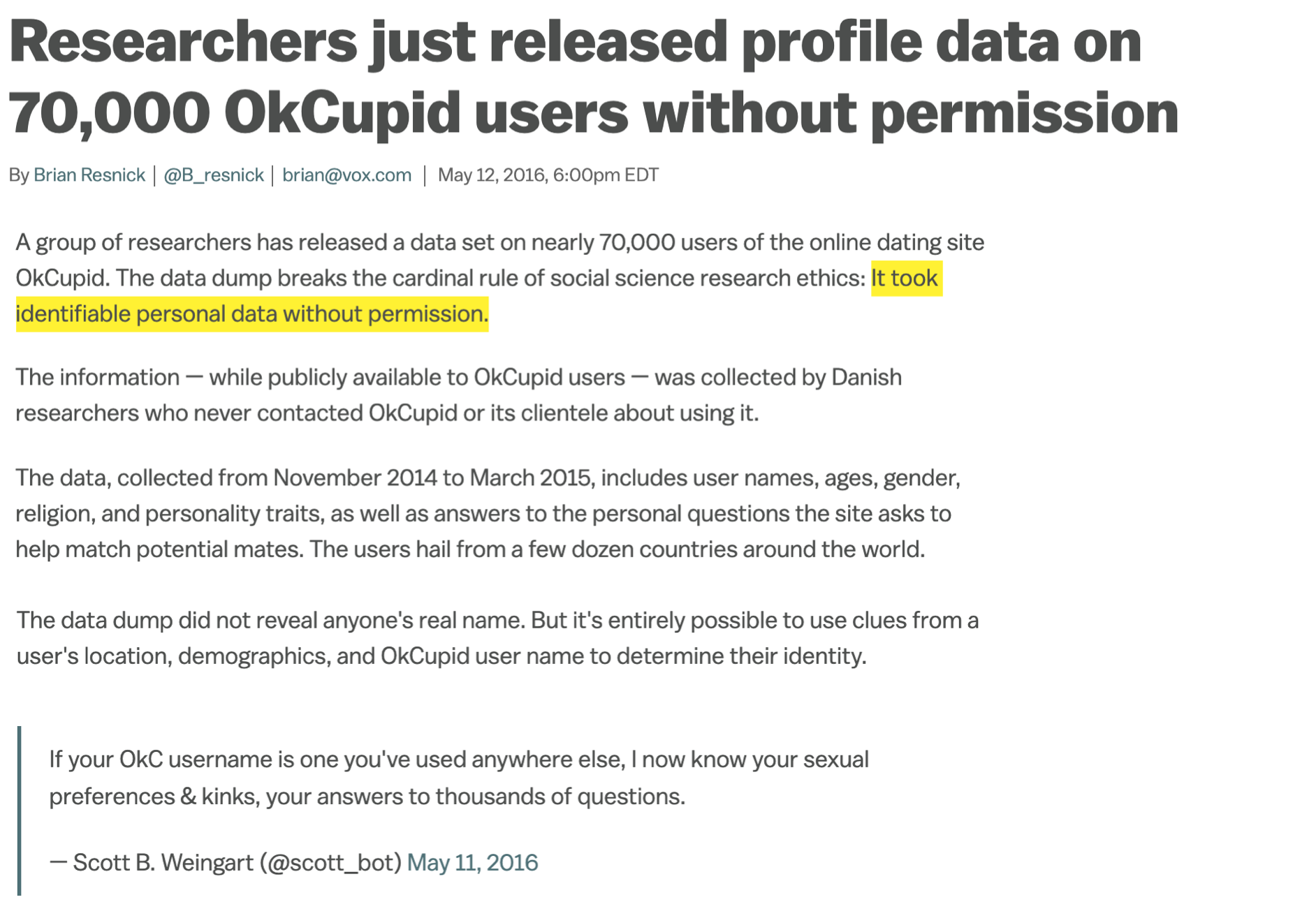

Source: Brian Resnick, Researchers just released profile data on 70,000 OkCupid users without permission, Vox.

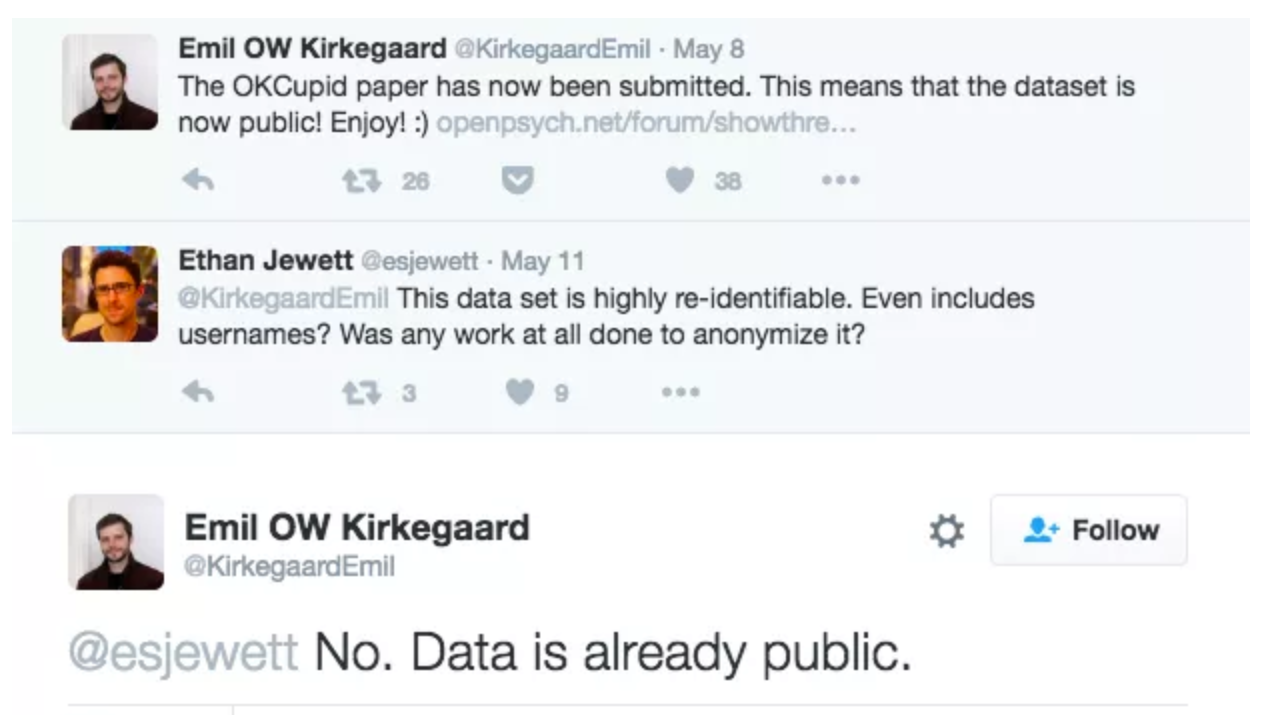

“Can you?” vs “Should you?”

Challenges: Unreliable formatting

alumni.duke.edu/news/notable-alumni

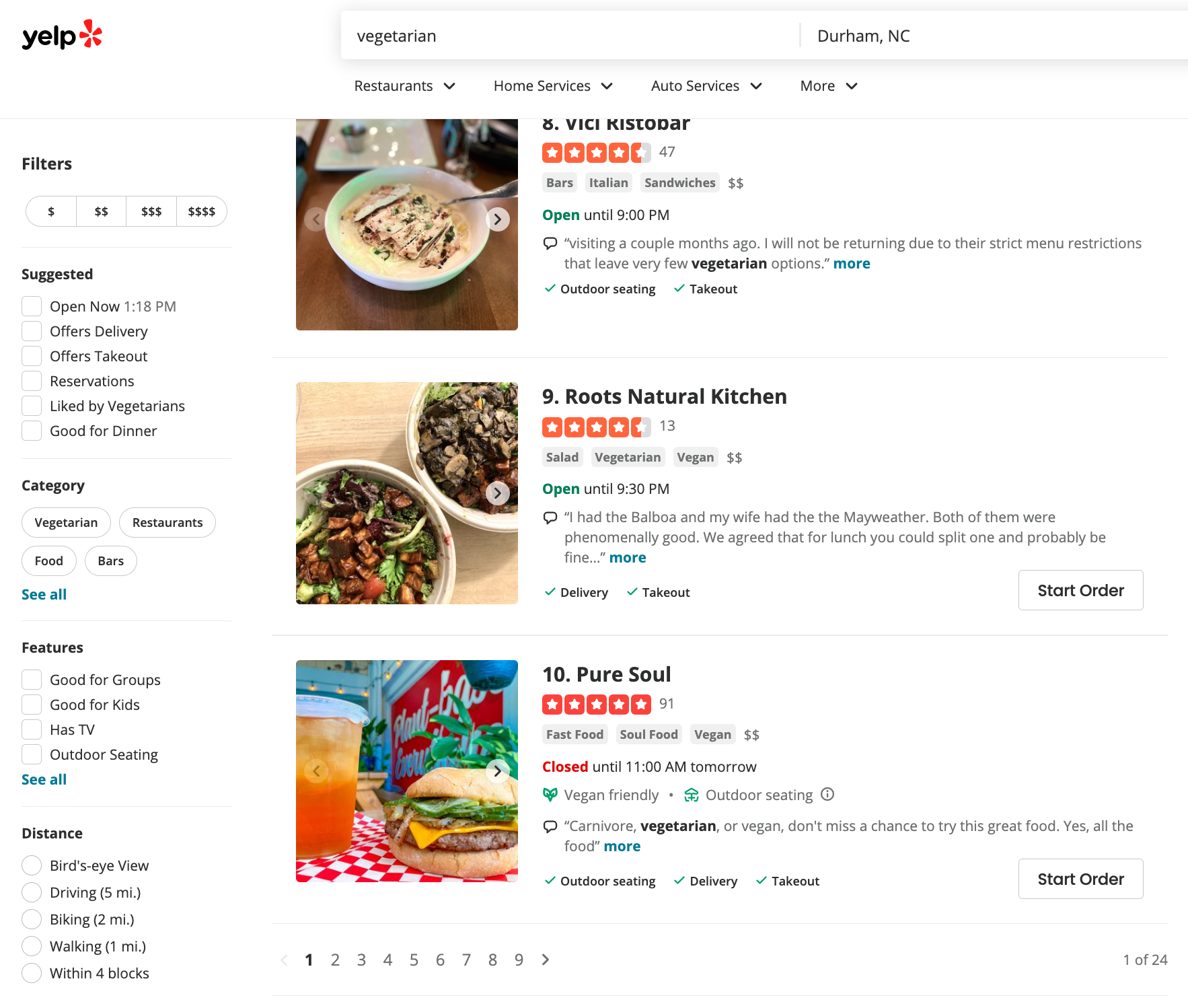

Challenges: Data broken into many pages

Workflow: Screen scraping vs. APIs

Two different scenarios for web scraping:

Screen scraping: extract data from source code of website, with html parser (easy) or regular expression matching (less easy)
Web APIs (application programming interface): website offers a set of structured http requests that return JSON or XML files

Warm-up

While you wait: Participate 📱💻

Announcements

Project

Data on the web

Participate 📱💻

Reading The Chronicle

Analyzing The Chronicle

Reading The Chronicle

Analyzing The Chronicle

All of this analysis is done in R!

Common words in The Chronicle titles

Avg sentiment scores of titles

Where is the data coming from?

Where is the data coming from?

Web scraping

Scraping the web: what? why?

Hypertext Markup Language

rvest

rvest

html, rvest, & xml2

Selecting elements

More selecting tags

CSS selectors

CSS classes and ids

Text with html_text() vs. html_text2()

HTML tables with html_table()

SelectorGadget

Application exercise

Opinion articles in The Chronicle

Goal

ae-09-chronicle-scrape

Recap

A new R workflow

Web scraping considerations

Ethics: “Can you?” vs “Should you?”

“Can you?” vs “Should you?”

Challenges: Unreliable formatting

Challenges: Data broken into many pages

Workflow: Screen scraping vs. APIs

Text with `html_text()` vs. `html_text2()`

HTML tables with `html_table()`
