Exam 2 review

Questions

Note

Suggested answers can be found here, but resist the urge to peek before you go through it yourself.

Blizzard salaries

In 2020, employees of Blizzard Entertainment circulated a spreadsheet to anonymously share salaries and recent pay increases amidst rising tension in the video game industry over wage disparities and executive compensation. (Source: Blizzard Workers Share Salaries in Revolt Over Pay)

The name of the data frame used for this analysis is blizzard_salary and the variables are:

percent_incr: Raise given in July 2020, as percent increase with values ranging from 1 (1% increase) to 21.5 (21.5% increase)
salary_type: Type of salary, with levels Hourly and Salaried
annual_salary: Annual salary, in USD, with values ranging from $50,939 to $216,856.
performance_rating: Most recent review performance rating, with levels Poor, Successful, High, and Top. The Poor level is the lowest rating and the Top level is the highest rating.

The first ten rows of blizzard_salary are shown below:

# A tibble: 409 × 4
   percent_incr salary_type annual_salary performance_rating
          <dbl> <chr>               <dbl> <chr>
 1          1   Salaried               1  High
 2          1   Salaried               1  Successful
 3          1   Salaried               1  High
 4          1   Hourly             33987. Successful
 5         NA   Hourly             34798. High
 6         NA   Hourly             35360  <NA>
 7         NA   Hourly             37440  <NA>
 8          0   Hourly             37814. <NA>
 9          4   Hourly             41101. Top
10          1.2 Hourly             42328  <NA>
# ℹ 399 more rows

Question 1

You fit a model for predicting raises (percent_incr) from salaries (annual_salary). We’ll call this model raise_1_fit. A tidy output of the model is shown below.

# A tibble: 2 × 5
  term           estimate  std.error statistic   p.value
  <chr>             <dbl>      <dbl>     <dbl>     <dbl>
1 (Intercept)   1.87      0.432           4.33 0.0000194
2 annual_salary 0.0000155 0.00000452      3.43 0.000669

Which of the following is the best interpretation of the slope coefficient?

For every additional $1,000 of annual salary, the model predicts the raise to be higher, on average, by 1.55%.
For every additional $1,000 of annual salary, the raise goes up by 0.0155%.
For every additional $1,000 of annual salary, the model predicts the raise to be higher, on average, by 0.0155%.
For every additional $1,000 of annual salary, the model predicts the raise to be higher, on average, by 1.87%.

Question 2

You then fit a model for predicting raises (percent_incr) from salaries (annual_salary) and performance ratings (performance_rating). We’ll call this model raise_2_fit. Which of the following is definitely true based on the information you have so far?

Intercept of raise_2_fit is higher than intercept of raise_1_fit.
Slope of raise_2_fit is higher than RMSE of raise_1_fit.
Adjusted $R^2$ of raise_2_fit is higher than adjusted $R^2$ of raise_1_fit.
$R^2$ of raise_2_fit is higher $R^2$ of raise_1_fit.

Question 3

The tidy model output for the raise_2_fit model you fit is shown below.

# A tibble: 5 × 5
  term                            estimate  std.error statistic  p.value
  <chr>                              <dbl>      <dbl>     <dbl>    <dbl>
1 (Intercept)                   3.55       0.508           6.99 1.99e-11
2 annual_salary                 0.00000989 0.00000436      2.27 2.42e- 2
3 performance_ratingPoor       -4.06       1.42           -2.86 4.58e- 3
4 performance_ratingSuccessful -2.40       0.397          -6.05 4.68e- 9
5 performance_ratingTop         2.99       0.715           4.18 3.92e- 5

When your teammate sees this model output, they remark

“The coefficient for performance_ratingSuccessful is negative. That’s weird. I guess it means that people who get successful performance ratings get lower raises.”

How would you respond to your teammate?

Question 4

Ultimately, your teammate decides they don’t like the negative slope coefficients in the model output you created (not that there’s anything wrong with negative slope coefficients!), does something else, and comes up with the following model output.

# A tibble: 5 × 5
  term                            estimate  std.error statistic    p.value
  <chr>                              <dbl>      <dbl>     <dbl>      <dbl>
1 (Intercept)                  -0.511      1.47          -0.347 0.729
2 annual_salary                 0.00000989 0.00000436     2.27  0.0242
3 performance_ratingSuccessful  1.66       1.42           1.17  0.242
4 performance_ratingHigh        4.06       1.42           2.86  0.00458
5 performance_ratingTop         7.05       1.53           4.60  0.00000644

Unfortunately they didn’t write their code in a Quarto document, instead just wrote some code in the Console and then lost track of their work. They remember using the fct_relevel() function and doing something like the following:

blizzard_salary <- blizzard_salary |>
  mutate(performance_rating = fct_relevel(performance_rating, ___))

What should they put in the blanks to get the same model output as above?

“Poor”, “Successful”, “High”, “Top”
“Successful”, “High”, “Top”
“Top”, “High”, “Successful”, “Poor”
Poor, Successful, High, Top

Question 5

Suppose we fit a model to predict percent_incr from annual_salary and salary_type. A tidy output of the model is shown below.

# A tibble: 3 × 5
  term                 estimate  std.error statistic p.value
  <chr>                   <dbl>      <dbl>     <dbl>   <dbl>
1 (Intercept)         1.24      0.570           2.18 0.0300
2 annual_salary       0.0000137 0.00000464      2.96 0.00329
3 salary_typeSalaried 0.913     0.544           1.68 0.0938

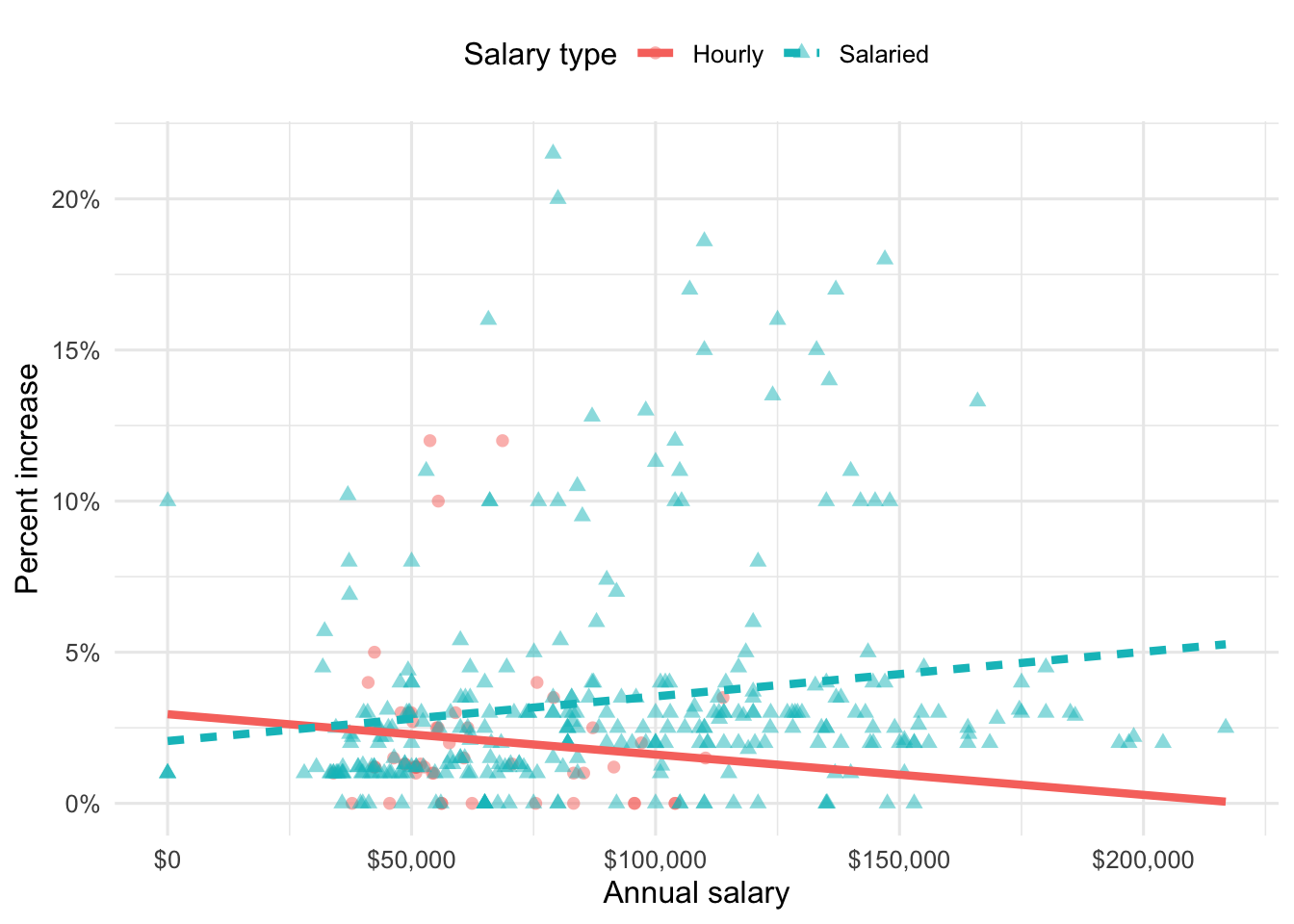

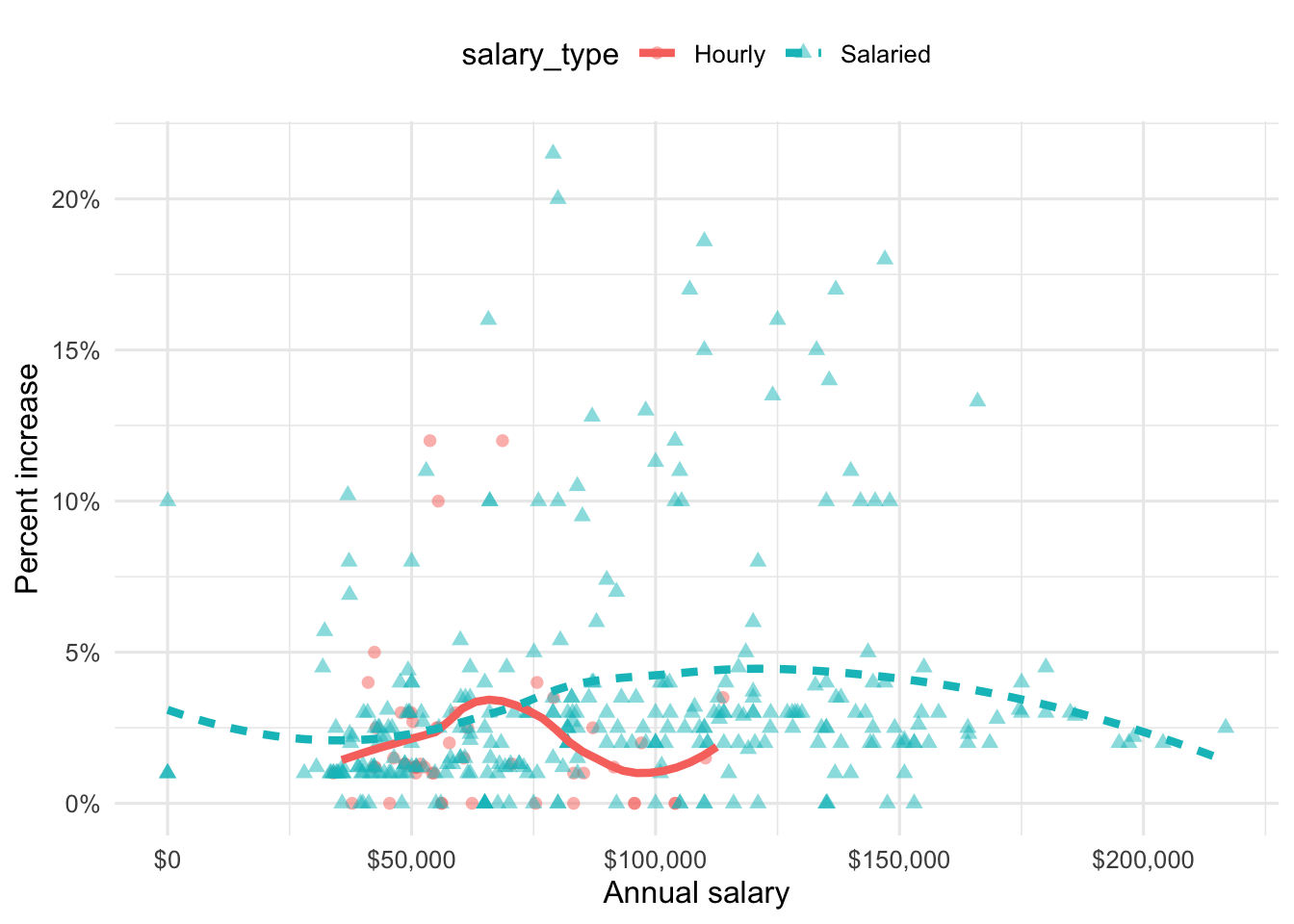

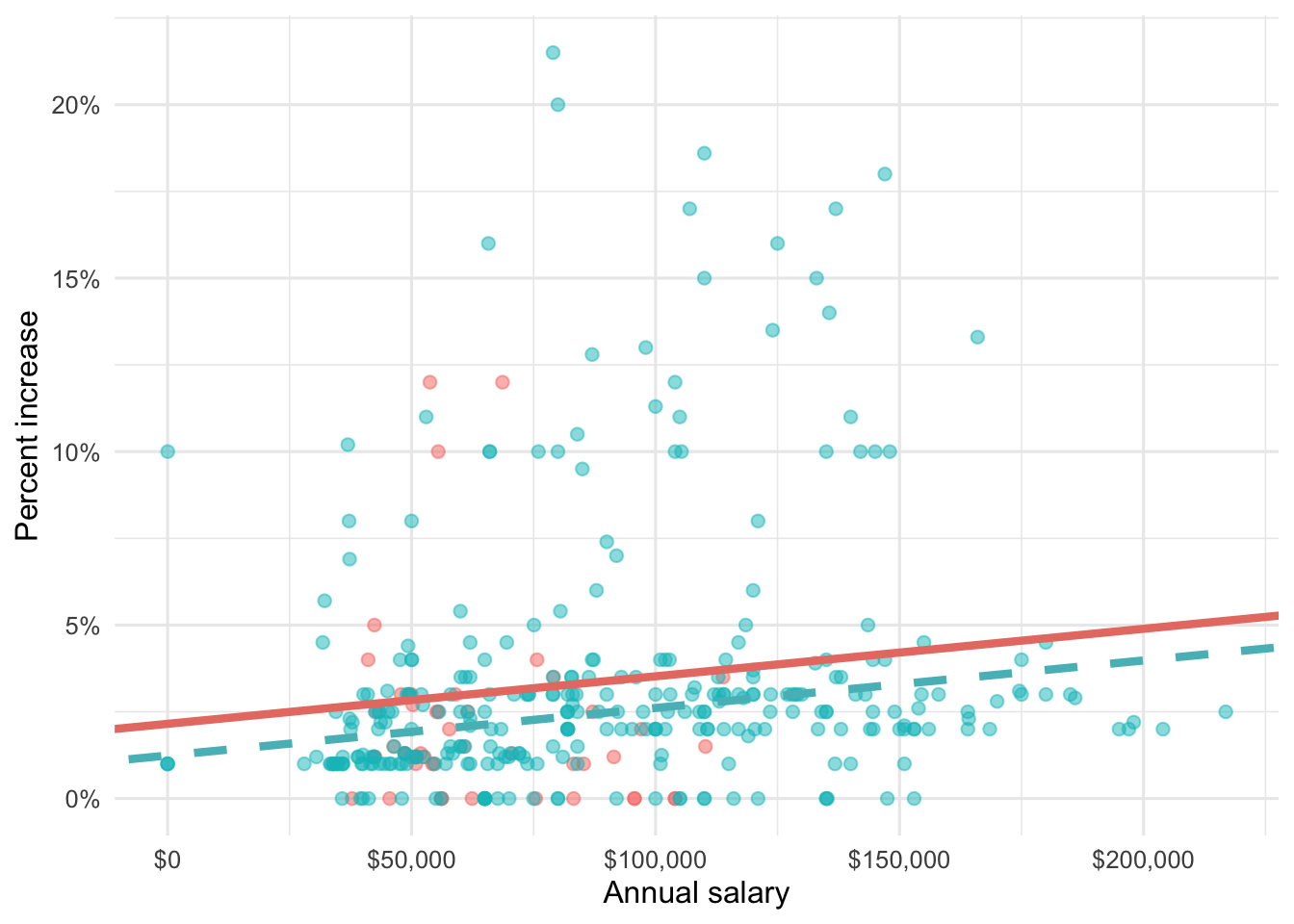

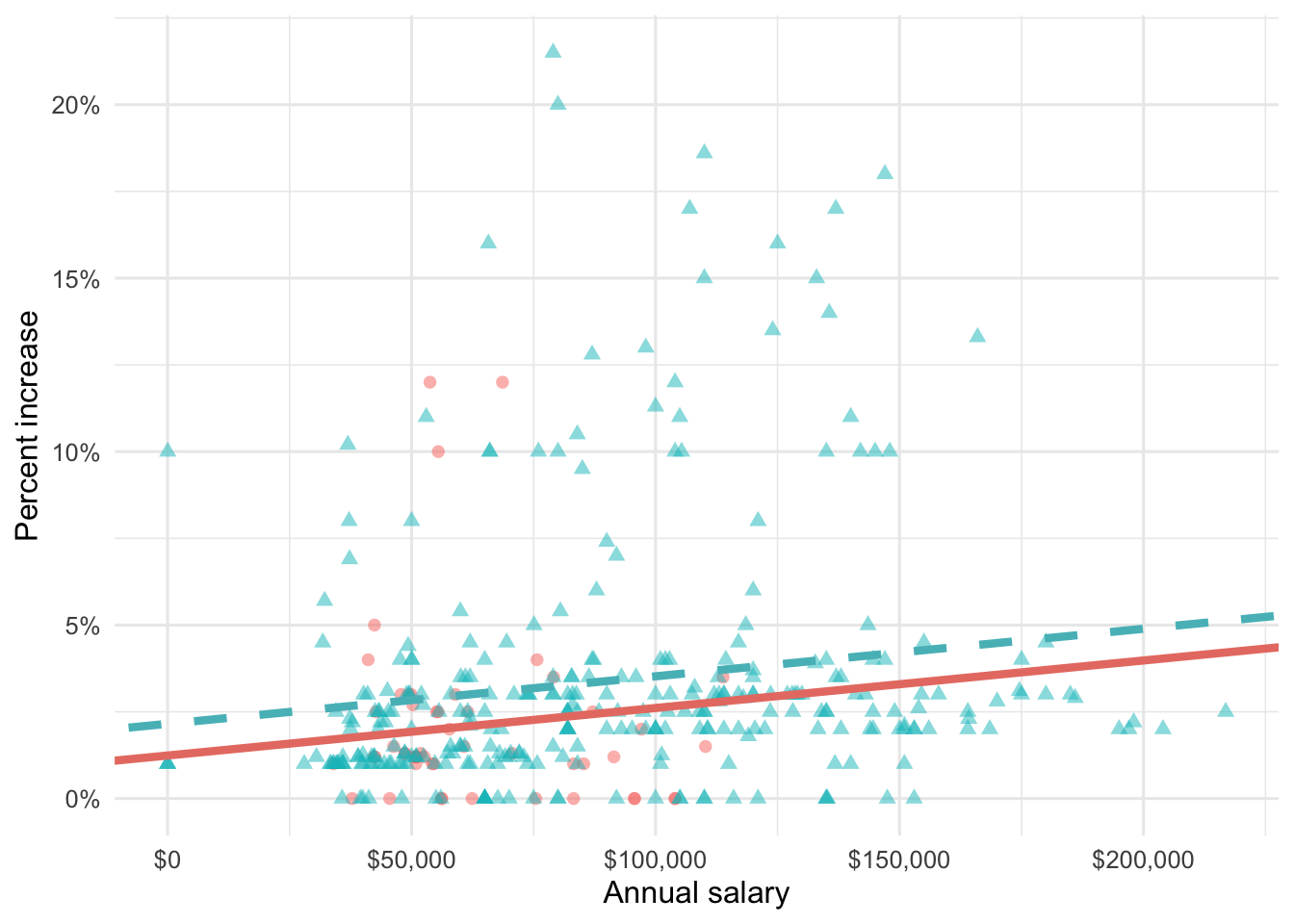

Which of the following visualizations represent this model? Explain your reasoning.

Question 6

Suppose you now fit a model to predict the natural log of percent increase, log(percent_incr), from performance rating. The model is called raise_4_fit.

You’re provided the following:

tidy(raise_4_fit) |>
  select(term, estimate) |>
  mutate(exp_estimate = exp(estimate))

# A tibble: 4 × 3
  term                         estimate exp_estimate
  <chr>                           <dbl>        <dbl>
1 (Intercept)                     -7.15     0.000786
2 performance_ratingSuccessful     6.93  1025.
3 performance_ratingHigh           8.17  3534.
4 performance_ratingTop            8.91  7438.

Based on this, which of the following is true?

a. The model predicts that the percentage increase employees with Successful performance get, on average, is higher by 10.25% compared to the employees with Poor performance rating.

b. The model predicts that the percentage increase employees with Successful performance get, on average, is higher by 6.93% compared to the employees with Poor performance rating.

c. The model predicts that the percentage increase employees with Successful performance get, on average, is higher by a factor of 1025 compared to the employees with Poor performance rating.

d. The model predicts that the percentage increase employees with Successful performance get, on average, is higher by a factor of 6.93 compared to the employees with Poor performance rating.

Movies

The data for this part comes from the Internet Movie Database (IMDB). Specifically, the data are a random sample of movies released between 1980 and 2020.

The name of the data frame used for this analysis is movies, and it contains the variables shown in Table 1.

Table 1: Data dictionary for movies

Variable	Description
`name`	name of the movie
`rating`	rating of the movie (R, PG, etc.)
`genre`	main genre of the movie.
`runtime`	duration of the movie
`year`	year of release
`release_date`	release date (YYYY-MM-DD)
`release_country`	release country
`score`	IMDB user rating
`votes`	number of user votes
`director`	the director
`writer`	writer of the movie
`star`	main actor/actress
`country`	country of origin
`budget`	the budget of a movie (some movies don’t have this, so it appears as 0)
`gross`	revenue of the movie
`company`	the production company

The first thirty rows of the movies data frame are shown in Table 2, with variable types suppressed (since we’ll ask about them later).

Table 2

First 30 rows of movies, with variable types suppressed.

# A tibble: 500 × 16
   name           score runtime genre     rating    release_country release_date
 1 Blue City        4.4 83 mins Action    R         United States   1986-05-02
 2 Winter Sleep     8.1 196     Drama     Not Rated Turkey          2014-06-12
 3 Rang De Basan…   8.1 167     Comedy    Not Rated United States   2006-01-26
 4 Pokémon Detec…   6.6 104     Action    PG        United States   2019-05-10
 5 A Bad Moms Ch…   5.6 104     Comedy    R         United States   2017-11-01
 6 Replicas         5.5 107     Drama     PG-13     United States   2019-01-11
 7 Windy City       5.8 103     Drama     R         Uruguay         1986-01-01
 8 War for the P…   7.4 140     Action    PG-13     United States   2017-07-14
 9 Tales from th…   6.4 98      Crime     R         United States   1995-05-24
10 Fire with Fire   6.5 103     Drama     PG-13     United States   1986-05-09
11 Raising Helen    6   119     Comedy    PG-13     United States   2004-05-28
12 Feeling Minne…   5.4 99      Comedy    R         United States   1996-09-13
13 The Babe         5.9 115     Biography PG        United States   1992-04-17
14 The Real Blon…   6   105     Comedy    R         United States   1998-02-27
15 To vlemma tou…   7.6 176     Drama     Not Rated United States   1997-11-01
16 Going the Dis…   6.3 102     Comedy    R         United States   2010-09-03
17 Jung on zo       6.8 103     Action    R         Hong Kong       1993-06-24
18 Rita, Sue and…   6.5 93      Comedy    R         United Kingdom  1987-05-29
19 Phone Booth      7   81      Crime     R         United States   2003-04-04
20 Happy Death D…   6.6 96      Comedy    PG-13     United States   2017-10-13
21 Barely Legal     4.7 90      Comedy    R         Thailand        2006-05-25
22 Three Kings      7.1 114     Action    R         United States   1999-10-01
23 Menace II Soc…   7.5 97      Crime     R         United States   1993-05-26
24 Four Rooms       6.8 98      Comedy    R         United States   1995-12-25
25 Quartet          6.8 98      Comedy    PG-13     United States   2013-03-01
26 Tape             7.2 86      Drama     R         Denmark         2002-07-12
27 Marked for De…   6   93      Action    R         United States   1990-10-05
28 Congo            5.2 109     Action    PG-13     United States   1995-06-09
29 Stop-Loss        6.4 112     Drama     R         United States   2008-03-28
30 Con Air          6.9 115     Action    R         United States   1997-06-06
# ℹ 470 more rows
# ℹ 9 more variables: budget, gross, votes, year,
#   director, writer, star, company, country

Score vs. runtime

In this part, we fit a model predicting score from runtime and name it score_runtime_fit.

score_runtime_fit <- linear_reg() |>
  fit(score ~ runtime, data = movies)

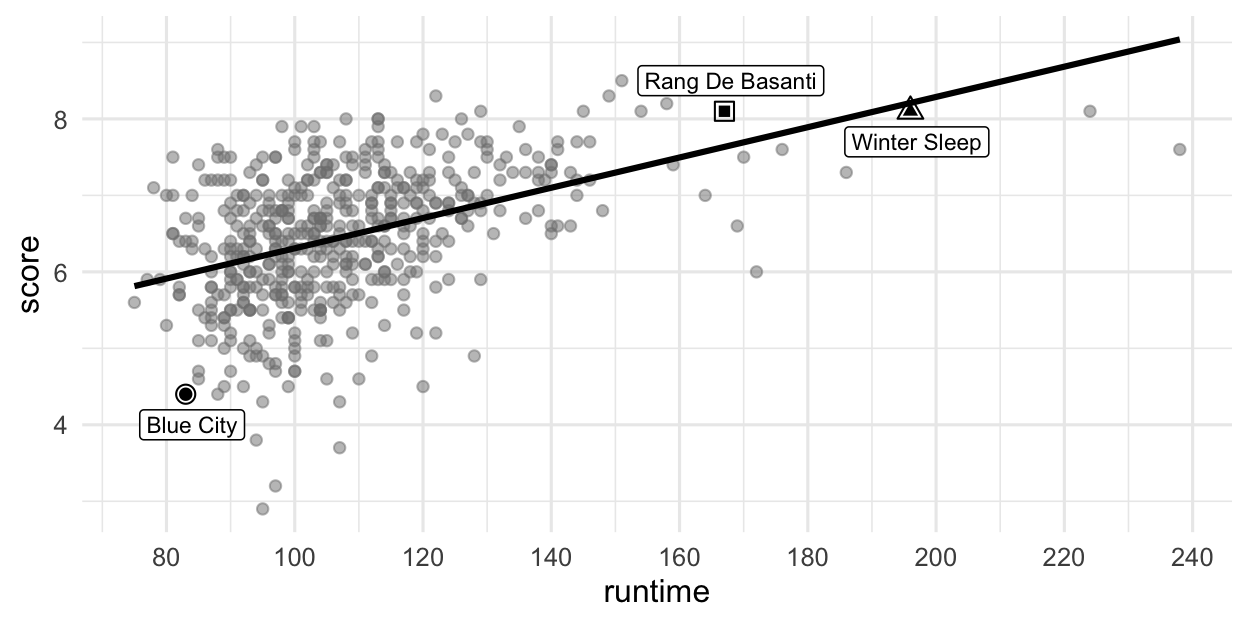

Figure 2 visualizes the relationship between score and runtime as well as the linear model for predicting score from runtime. The first three movies in Table 2 are labeled in the visualization as well. Answer all questions in this part based on Figure 2.

Figure 2: Scatterplot of `score` vs. `runtime` for `movies`.

Question 7

Partial code for producing Figure 2 is given below. Which of the following goes in the blank on Line 2? Select all that apply.

movies |>
  mutate(runtime = ___) |>
  ggplot(aes(x = runtime, y = score)) +
  geom_point(alpha = 0.5) +
  geom_smooth(method = "lm", se = FALSE)
# additional code for annotating Blue City on the plot

grepl(" mins", runtime)
grep(" mins", runtime)
str_remove(runtime, " mins")
as.numeric(str_remove(runtime, " mins"))
na.rm(runtime)

Question 8

Based on this model, order the three labeled movies in Figure 2 in decreasing order of the magnitude (absolute value) of their residuals.

Winter Sleep > Rang De Basanti > Blue City
Winter Sleep > Blue City > Rang De Basanti
Rang De Basanti > Winter Sleep > Blue City
Blue City > Winter Sleep > Rang De Basanti
Blue City > Rang De Basanti > Winter Sleep

Question 9

The R-squared for the model visualized in Figure 2 is 31%. Which of the following is the best interpretation of this value?

31% of the variability in movie runtimes is explained by their scores.
31% of the variability in movie scores is explained by their runtime.
The model accurately predicts scores of 31% of the movies in this sample.
The model accurately predicts scores of 31% of all movies.
The correlation between scores and runtimes of movies is 0.31.

Score vs. runtime or year

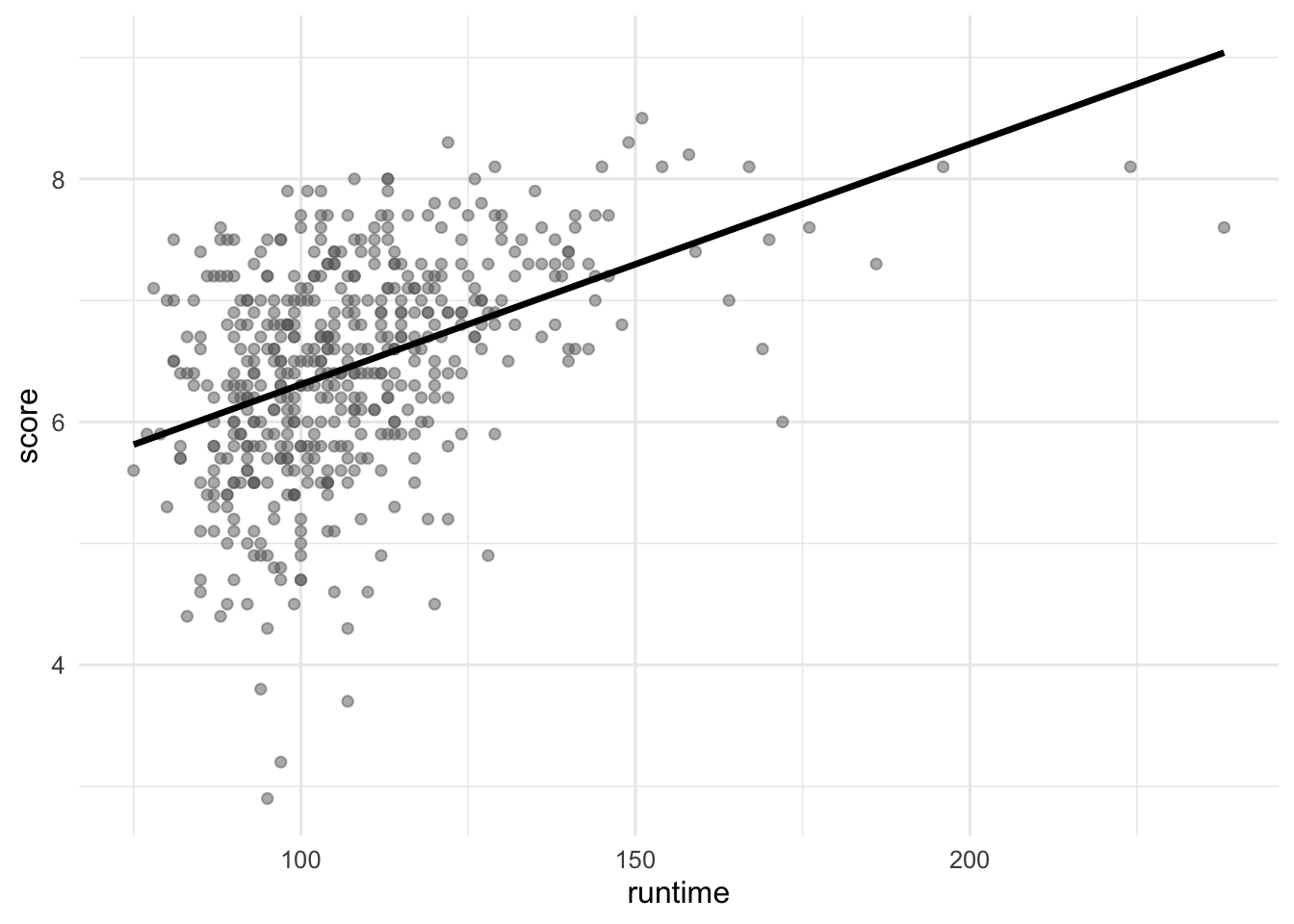

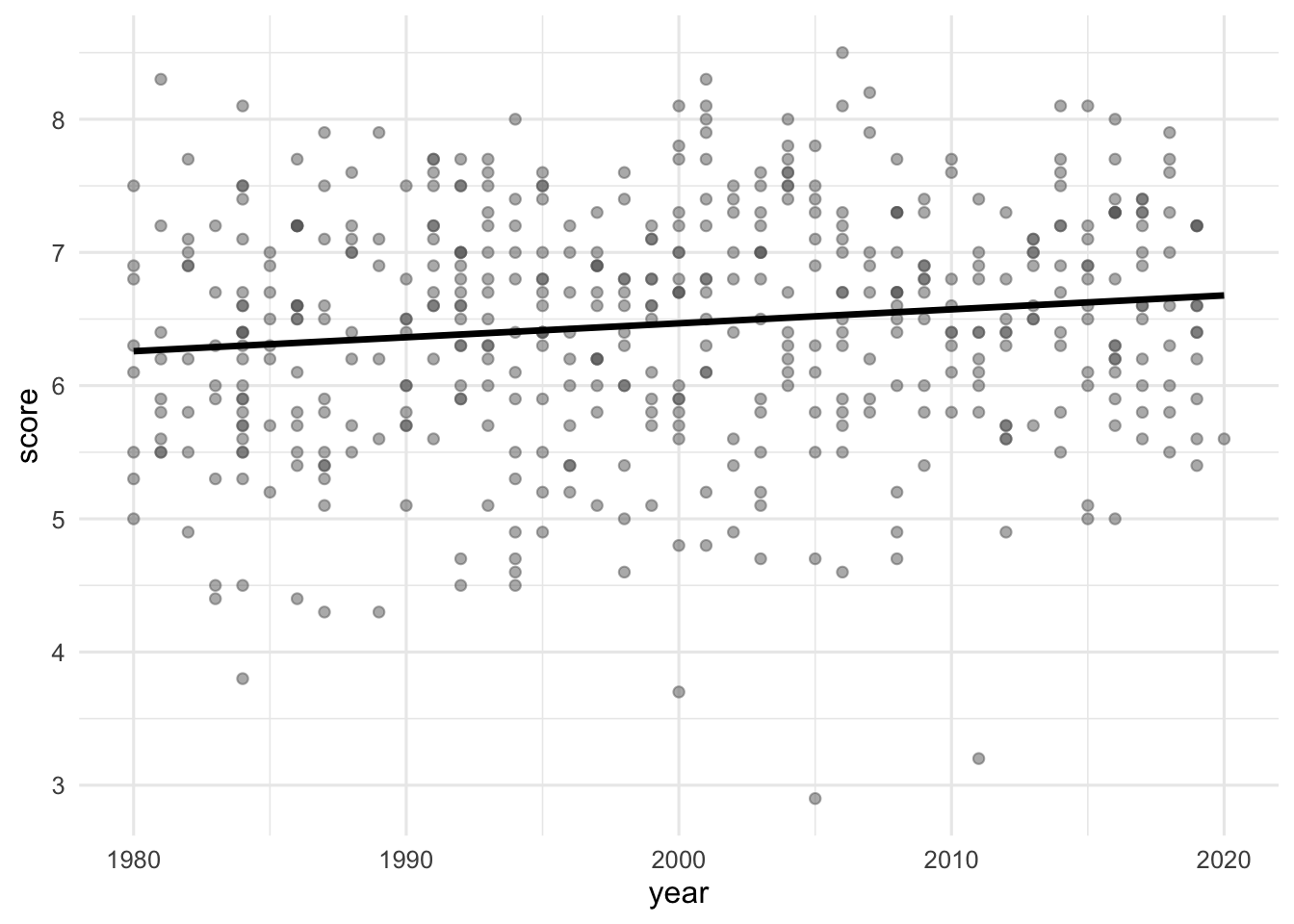

The visualizations below show the relationship between score and runtime as well as score and year, respectively. Additionally, the lines of best fit are overlaid on the visualizations.

The correlation coefficients of these relationships are calculated below, though some of the code and the output are missing. Answer all questions in this part based on the code and output shown below.

movies |>
  __blank_1__(
    r_score_runtime = cor(runtime, score),
    r_score_year = cor(year, score)
  )

# A tibble: 1 × 2
  r_score_runtime r_score_year
            <dbl>        <dbl>
1           0.434. __blank_2__

Question 10

Which of the following goes in __blank_1__?

summarize
mutate
group_by
arrange
filter

Question 11

What can we say about the value that goes in __blank_2__?

NA
A value between 0 and 0.434.
A value between 0.434 and 1.
A value between 0 and -0.434.
A value between -1 and -0.434.

Score vs. runtime and rating

In this part, we fit a model predicting score from runtime and rating (categorized as G, PG, PG-13, R, NC-17, and Not Rated), and name it score_runtime_rating_fit.

The model output for score_runtime_rating_fit is shown in Table 3. Answer all questions in this part based on Table 3.

Table 3: Regression output for score_runtime_rating_fit.

term	estimate	std.error	statistic	p.value
(Intercept)	4.525	0.332	13.647	0.000
runtime	0.021	0.002	10.702	0.000
ratingPG	-0.189	0.295	-0.642	0.521
ratingPG-13	-0.452	0.292	-1.547	0.123
ratingR	-0.257	0.285	-0.901	0.368
ratingNC-17	-0.355	0.486	-0.730	0.466
ratingNot Rated	-0.282	0.328	-0.860	0.390

Question 12

Which of the following is TRUE about the intercept of score_runtime_rating_fit? Select all that are true.

Keeping runtime constant, G-rated movies are predicted to score, on average, 4.525 points.
Keeping runtime constant, movies without a rating are predicted to score, on average, 4.525 points.
Movies without a rating that are 0 minutes in length are predicted to score, on average, 4.525 points.
All else held constant, movies that are 0 minutes in length are predicted to score, on average, 4.525 points.
G-rated movies that are 0 minutes in length are predicted to score, on average, 4.525 points.

Question 13

Which of the following is the best interpretation of the slope of runtime in score_runtime_rating_fit?

All else held constant, as runtime increases by 1 minute, the score of the movie increases by 0.021 points.
For G-rated movies, all else held constant, as runtime increases by 1 minute, the score of the movie increases by 0.021 points.
All else held constant, for each additional minute of runtime, movie scores will be higher by 0.021 points on average.
G-rated movies that are 0 minutes in length are predicted to score 0.021 points on average.
For each higher level of rating, the movie scores go up by 0.021 points on average.

Question 14

Fill in the blank:

R-squared for score_runtime_rating_fit (the model predicting score from runtime and rating) _________ the R-squared the model score_runtime_fit (for predicting score from runtime alone).

is less than
is equal to
is greater than
cannot be compared (based on the information provided) to
is both greater than and less than

Question 15

The model score_runtime_rating_fit (the model predicting score from runtime and rating) can be visualized as parallel lines for each level of rating. Which of the following is the equation of the line for R-rated movies?

$\widehat{score} = (4.525 - 0.257) + 0.021 \times runtime$
$score = (4.525 - 0.257) + 0.021 \times runtime$
$\widehat{score} = 4.525 + (0.021 - 0.257) \times runtime$
$score = 4.525 + (0.021 - 0.257) \times runtime$
$\widehat{score} = (4.525 + 0.021) - 0.257 \times runtime$

Miscellaneous

Question 16

Which of the following is the definition of a regression model? Select all that apply.

a. $\hat{y} = b_0 + b_1 X_1$

b. $y = \beta_0 + \beta_1 X_1$

c. $\hat{y} = \beta_0 + \beta_1 X_1 + \epsilon$

d. $y = \beta_0 + \beta_1 X_1 + \epsilon$

Question 17

Define the term “parsimonious model”.

Building a spam filter

The data come from incoming emails in David Diez’s (one of the authors of OpenIntro textbooks) Gmail account for the first three months of 2012. All personally identifiable information has been removed. The dataset is called email and it’s in the openintro package.

The outcome variable is spam, which takes the value 1 if the email is spam, 0 otherwise.

Question 18

What type of variable is spam? What percent of the emails are spam?
What type of variable is dollar - number of times a dollar sign or the word “dollar” appeared in the email? Visualize and describe its distribution, supporting your description with the appropriate summary statistics.
Fit a logistic regression model predicting spam from dollar. Then, display the tidy output of the model.
Using this model and the predict() function, predict the probability the email is spam if it contains 5 dollar signs. Based on this probability, how does the model classify this email?

Note

To obtain the predicted probability, you can set the type argument in predict() to "prob".

Question 19

Fit another logistic regression model predicting spam from dollar, winner (indicating whether “winner” appeared in the email), and urgent_subj (whether the word “urgent” is in the subject of the email). Then, display the tidy output of the model.
Using this model and the augment() function, classify each email in the email dataset as spam or not spam. Store the resulting data frame with an appropriate name and display the data frame as well.
Using your data frame from the previous part, determine, in a single pipeline, and using count(), the numbers of emails:
- that are labelled as spam that are actually spam
- that are not labelled as spam that are actually spam
- that are labelled as spam that are actually not spam
- that are not labelled as spam that are actually not spam
Store the resulting data frame with an appropriate name and display the data frame as well.
In a single pipeline, and using mutate(), calculate the false positive and false negative rates. In addition to these numbers showing in your R output, you must write a sentence that explicitly states and identified the two rates.

Question 20

Fit another logistic regression model predicting spam from dollar and other variable(s) you think would be a good predictor. Provide a 1-sentence justification for why you chose this variable. Display the tidy output of the model.
Using this model and the augment() function, classify each email in the email dataset as spam or not spam. Store the resulting data frame with an appropriate name and display the data frame as well.
Using your data frame from the previous part, determine, in a single pipeline, and using count(), the numbers of emails:
- that are labelled as spam that are actually spam
- that are not labelled as spam that are actually spam
- that are labelled as spam that are actually not spam
- that are not labelled as spam that are actually not spam
Store the resulting data frame with an appropriate name and display the data frame as well.
In a single pipeline, and using mutate(), calculate the false positive and false negative rates. In addition to these numbers showing in your R output, you must write a sentence that explicitly states and identified the two rates.
Based on the false positive and false negatives rates of this model, comment, in 1-2 sentences, on which model (one from Question 19 or Question 20) is preferable and why.
